KF77減速機重量：KF77減速機重量59公斤，KF77減速機帶電機重量分別如下

KF77減速機帶0.37KW電機重量69.5公斤，KF77減速機帶0.55KW電機重量74公斤，KF77減速機帶0.75KW電機重量75公斤，KF77減速機帶1.1KW電機重量79公斤，KF77減速機帶1.5KW電機重量82公斤，KF77減速機帶2.2KW電機重量91公斤，KF77減速機帶3KW電機重量94公斤，KF77減速機帶4KW電機重量105公斤，KF77減速機帶5.5KW電機重量119公斤，KF77減速機帶7.5KW電機重量132公斤，KF77減速機帶11KW電機重量174公斤。

KF77減速機加油量：可加合成油

KF77減速機M2方式安裝加4.1升，KF77減速機M1方式安裝加2.1升，KF77減速機M3方式安裝加4.4升，KF77減速機M4方式安裝加5.9升，KF77減速機M5方式安裝加4.5升，KF77減速機M6方式安裝加4.5升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

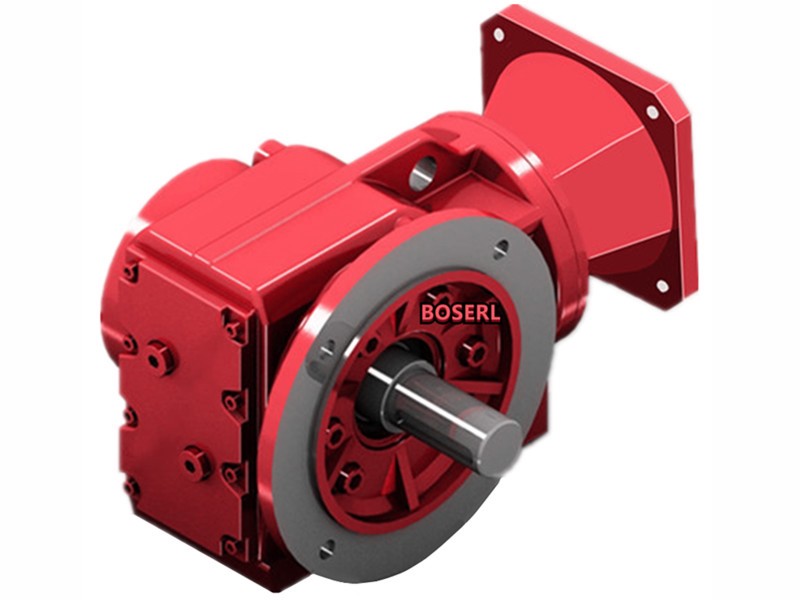

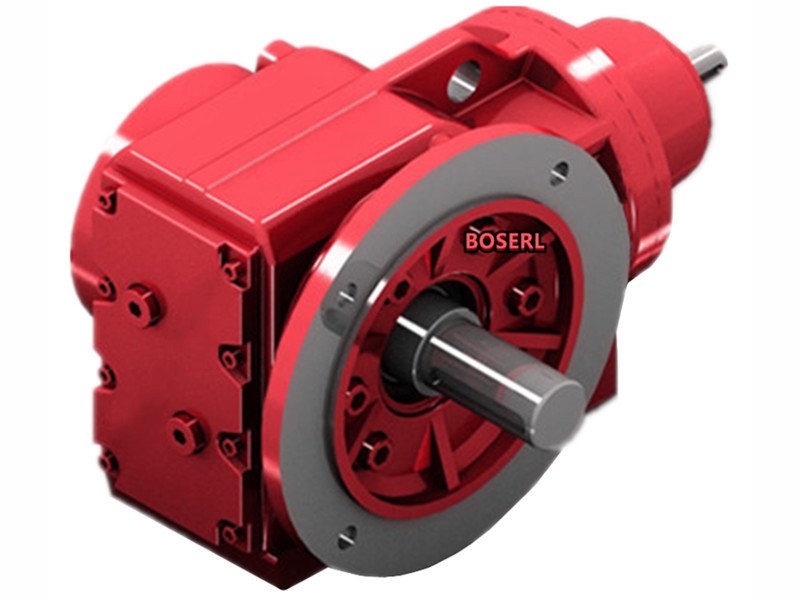

KF77減速機實物圖：圖一為KF77立式方式安裝實心軸輸出螺旋錐齒輪減速電機，圖二K77臥式方式安裝螺旋錐齒輪減速電機，圖三為KA77臥式方式安裝空心軸螺旋錐齒輪減速電機，圖四為KAF77立式方式安裝直角空心軸螺旋錐齒輪減速機。

KF77減速機型號表示方法：

KF77減速機型號結構KF77-B7.5KW-4P-減速比-安裝方式-接線盒位置。

KF77減速機性能參數表結構說明：V強制冷卻風扇，RS逆止器，C防雨罩，Input Configuration代表輸入帶置，TF電機熱保護裝置，KF77、K77、KA77、KAF77減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置帶自鎖功能。

KF77減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1方式安裝，方向?yàn)?從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。直角減速機

KF77減速機參數：

KF77減速機輸出扭矩1450N.m，1550N.m，1340N.m，1000N.m，990N.m，940N.m，890N.m，820N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

KF77減速機電機可帶單相、直流、變頻、剎車、防爆、伺服、交流、三相電機KF77帶0.37KW，KF77帶0.55KW，KF77帶0.75KW，KF77帶1.1KW，KF77帶1.5KW，KF77帶2.2KW，KF77帶3KW，KF77帶4KW，KF77帶5.5KW，KF77帶7.5KW，KF77帶11KW。

KF77減速機輸出轉數7.3轉，7.8轉，9.1轉，10轉，11轉，12轉，14轉，16轉，18轉，19轉，22轉，24轉，27轉，31轉，35轉，36轉，40轉，45轉，48轉，55轉，61轉，69轉，78轉，88轉，104轉，113轉，129轉，146轉，165轉，193轉。（以上轉數均為四級電機算出的，可用2P、6P、8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

KF77減速機減速比192.18比，179.37比，154.02比，135.28比，128.52比，113.56比，97.05比，88.97比，78.07比，73.99比，64.75比，58.34比，51.18比，45.16比，40.04比，38.39比，35.2比，30.89比，29.27比，25.62比，23.08比，20.25比，17.87比，15.84比，13.52比，12.36比，10.84比，9.56比，8.48比，7.24比。

KF77減速機外形尺寸：輸出軸直徑Φ50（可定做）+鍵3.5，高288*寬343（帶輸出軸）*長314

KF77減速機型號：KF77AQA80,KF77AQA100,KF77AQA115,KF77AQA140,KF77AQA160,KF77AQA190,KF77AQH80,KF77AQH100,KF77AQH115,KF77AQH140,KF77AQH160,KF77AQH190,JRTKF77-Y0.25KW,JRTKF77-Y0.37KW,JRTKF77-Y0.55KW,JRTKF77-Y0.75KW,JRTKF77-Y1.1KW,JRTKF77-Y1.5KW,JRTKF77-Y100M4,JRTKF77-Y112M4,JRTKF77-Y11KW,JRTKF77-Y132M4,JRTKF77-Y160M4,JRTKF77-Y2.2KW,JRTKF77-Y3KW,JRTKF77-Y4KW,JRTKF77-Y5.5KW,JRTKF77-Y7.5KW,JRTKF77-Y71M4,JRTKF77-Y80M4,JRTKF77-Y90M4,JRTKF77-YEJ100M4,JRTKF77-YEJ112M4,JRTKF77-YEJ132M4,JRTKF77-YEJ160M4,JRTKF77-YEJ71M4,JRTKF77-YEJ80M4,JRTKF77-YEJ90M4,JRTKF77-YS100M4,JRTKF77-YS112M4,JRTKF77-YS132M4,JRTKF77-YS160M4,JRTKF77-YS71M4,JRTKF77-YS80M4,JRTKF77-YS90M4,JRTKF77-YVP100M4,JRTKF77-YVP112M4,JRTKF77-YVP132M4,JRTKF77-YVP160M4,JRTKF77-YVP71M4,JRTKF77-YVP80M4,JRTKF77-YVP90M4,JRTKF77-YVPEJ100M4,JRTKF77-YVPEJ112M4,JRTKF77-YVPEJ132M4,JRTKF77-YVPEJ160M4,JRTKF77-YVPEJ71M4,JRTKF77-YVPEJ80M4,JRTKF77-YVPEJ90M4,EWKF77-Y0.25KW,EWKF77-Y0.37KW,EWKF77-Y0.55KW,EWKF77-Y0.75KW,EWKF77-Y1.1KW,EWKF77-Y1.5KW,EWKF77-Y100M4,EWKF77-Y112M4,EWKF77-Y11KW,EWKF77-Y132M4,EWKF77-Y160M4,EWKF77-Y2.2KW,EWKF77-Y3KW,EWKF77-Y4KW,EWKF77-Y5.5KW,EWKF77-Y7.5KW,EWKF77-Y71M4,EWKF77-Y80M4,EWKF77-Y90M4,EWKF77-YEJ100M4,EWKF77-YEJ112M4,EWKF77-YEJ132M4,EWKF77-YEJ160M4,EWKF77-YEJ71M4,EWKF77-YEJ80M4,EWKF77-YEJ90M4,EWKF77-YS100M4,EWKF77-YS112M4,EWKF77-YS132M4,EWKF77-YS160M4,EWKF77-YS71M4,EWKF77-YS80M4,EWKF77-YS90M4,EWKF77-YVP100M4,EWKF77-YVP112M4,EWKF77-YVP132M4,EWKF77-YVP160M4,EWKF77-YVP71M4,EWKF77-YVP80M4,EWKF77-YVP90M4,EWKF77-YVPEJ100M4,EWKF77-YVPEJ112M4,EWKF77-YVPEJ132M4,EWKF77-YVPEJ160M4,EWKF77-YVPEJ71M4,EWKF77-YVPEJ80M4,EWKF77-YVPEJ90M4,SLKF77-Y0.25KW,SLKF77-Y0.37KW,SLKF77-Y0.55KW,SLKF77-Y0.75KW,SLKF77-Y1.1KW,SLKF77-Y1.5KW,SLKF77-Y100M4,SLKF77-Y112M4,SLKF77-Y11KW,SLKF77-Y132M4,SLKF77-Y160M4,SLKF77-Y2.2KW,SLKF77-Y3KW,SLKF77-Y4KW,SLKF77-Y5.5KW,SLKF77-Y7.5KW,SLKF77-Y71M4,SLKF77-Y80M4,SLKF77-Y90M4,SLKF77-YEJ100M4,SLKF77-YEJ112M4,SLKF77-YEJ132M4,SLKF77-YEJ160M4,SLKF77-YEJ71M4,SLKF77-YEJ80M4,SLKF77-YEJ90M4,SLKF77-YS100M4,SLKF77-YS112M4,SLKF77-YS132M4,SLKF77-YS160M4,SLKF77-YS71M4,SLKF77-YS80M4,SLKF77-YS90M4,SLKF77-YVP100M4,SLKF77-YVP112M4,SLKF77-YVP132M4,SLKF77-YVP160M4,SLKF77-YVP71M4,SLKF77-YVP80M4,SLKF77-YVP90M4,SLKF77-YVPEJ100M4,SLKF77-YVPEJ112M4,SLKF77-YVPEJ132M4,SLKF77-YVPEJ160M4,SLKF77-YVPEJ71M4,SLKF77-YVPEJ80M4,SLKF77-YVPEJ90M4,DSZKF77-Y0.25KW,DSZKF77-Y0.37KW,DSZKF77-Y0.55KW,DSZKF77-Y0.75KW,DSZKF77-Y1.1KW,DSZKF77-Y1.5KW,DSZKF77-Y100M4,DSZKF77-Y112M4,DSZKF77-Y11KW,DSZKF77-Y132M4,DSZKF77-Y160M4,DSZKF77-Y2.2KW,DSZKF77-Y3KW,DSZKF77-Y4KW,DSZKF77-Y5.5KW,DSZKF77-Y7.5KW,DSZKF77-Y71M4,DSZKF77-Y80M4,DSZKF77-Y90M4,DSZKF77-YEJ100M4,DSZKF77-YEJ112M4,DSZKF77-YEJ132M4,DSZKF77-YEJ160M4,DSZKF77-YEJ71M4,DSZKF77-YEJ80M4,DSZKF77-YEJ90M4,DSZKF77-YS100M4,DSZKF77-YS112M4,DSZKF77-YS132M4,DSZKF77-YS160M4,DSZKF77-YS71M4,DSZKF77-YS80M4,DSZKF77-YS90M4,DSZKF77-YVP100M4,DSZKF77-YVP112M4,DSZKF77-YVP132M4,DSZKF77-YVP160M4,DSZKF77-YVP71M4,DSZKF77-YVP80M4,DSZKF77-YVP90M4,DSZKF77-YVPEJ100M4,DSZKF77-YVPEJ112M4,DSZKF77-YVPEJ132M4,DSZKF77-YVPEJ160M4,DSZKF77-YVPEJ71M4,DSZKF77-YVPEJ80M4,DSZKF77-YVPEJ90M4,BKF77-Y0.25KW,BKF77-Y0.37KW,BKF77-Y0.55KW,BKF77-Y0.75KW,BKF77-Y1.1KW,BKF77-Y1.5KW,BKF77-Y100M4,BKF77-Y112M4,BKF77-Y11KW,BKF77-Y132M4,BKF77-Y160M4,BKF77-Y2.2KW,BKF77-Y3KW,BKF77-Y4KW,BKF77-Y5.5KW,BKF77-Y7.5KW,BKF77-Y71M4,BKF77-Y80M4,BKF77-Y90M4,BKF77-YEJ100M4,BKF77-YEJ112M4,BKF77-YEJ132M4,BKF77-YEJ160M4,BKF77-YEJ71M4,BKF77-YEJ80M4,BKF77-YEJ90M4,BKF77-YS100M4,BKF77-YS112M4,BKF77-YS132M4,BKF77-YS160M4,BKF77-YS71M4,BKF77-YS80M4,BKF77-YS90M4,BKF77-YVP100M4,BKF77-YVP112M4,BKF77-YVP132M4,BKF77-YVP160M4,BKF77-YVP71M4,BKF77-YVP80M4,BKF77-YVP90M4,BKF77-YVPEJ100M4,BKF77-YVPEJ112M4,BKF77-YVPEJ132M4,BKF77-YVPEJ160M4,BKF77-YVPEJ71M4,BKF77-YVPEJ80M4,BKF77-YVPEJ90M4,GKF77-Y0.25KW,GKF77-Y0.37KW,GKF77-Y0.55KW,GKF77-Y0.75KW,GKF77-Y1.1KW,GKF77-Y1.5KW,GKF77-Y100M4,GKF77-Y112M4,GKF77-Y11KW,GKF77-Y132M4,GKF77-Y160M4,GKF77-Y2.2KW,GKF77-Y3KW,GKF77-Y4KW,GKF77-Y5.5KW,GKF77-Y7.5KW,GKF77-Y71M4,GKF77-Y80M4,GKF77-Y90M4,GKF77-YEJ100M4,GKF77-YEJ112M4,GKF77-YEJ132M4,GKF77-YEJ160M4,GKF77-YEJ71M4,GKF77-YEJ80M4,GKF77-YEJ90M4,GKF77-YS100M4,GKF77-YS112M4,GKF77-YS132M4,GKF77-YS160M4,GKF77-YS71M4,GKF77-YS80M4,GKF77-YS90M4,GKF77-YVP100M4,GKF77-YVP112M4,GKF77-YVP132M4,GKF77-YVP160M4,GKF77-YVP71M4,GKF77-YVP80M4,GKF77-YVP90M4,GKF77-YVPEJ100M4,GKF77-YVPEJ112M4,GKF77-YVPEJ132M4,GKF77-YVPEJ160M4,GKF77-YVPEJ71M4,GKF77-YVPEJ80M4,GKF77-YVPEJ90M4,KCF77-Y0.25KW,KCF77-Y0.37KW,KCF77-Y0.55KW,KCF77-Y0.75KW,KCF77-Y1.1KW,KCF77-Y1.5KW,KCF77-Y100M4,KCF77-Y112M4,KCF77-Y11KW,KCF77-Y132M4,KCF77-Y160M4,KCF77-Y2.2KW,KCF77-Y3KW,KCF77-Y4KW,KCF77-Y5.5KW,KCF77-Y7.5KW,KCF77-Y71M4,KCF77-Y80M4,KCF77-Y90M4,KCF77-YEJ100M4,KCF77-YEJ112M4,KCF77-YEJ132M4,KCF77-YEJ160M4,KCF77-YEJ71M4,KCF77-YEJ80M4,KCF77-YEJ90M4,KCF77-YS100M4,KCF77-YS112M4,KCF77-YS132M4,KCF77-YS160M4,KCF77-YS71M4,KCF77-YS80M4,KCF77-YS90M4,KCF77-YVP100M4,KCF77-YVP112M4,KCF77-YVP132M4,KCF77-YVP160M4,KCF77-YVP71M4,KCF77-YVP80M4,KCF77-YVP90M4,KCF77-YVPEJ100M4,KCF77-YVPEJ112M4,KCF77-YVPEJ132M4,KCF77-YVPEJ160M4,KCF77-YVPEJ71M4,KCF77-YVPEJ80M4,KCF77-YVPEJ90M4,MTJF77-Y0.25KW,MTJF77-Y0.37KW,MTJF77-Y0.55KW,MTJF77-Y0.75KW,MTJF77-Y1.1KW,MTJF77-Y1.5KW,MTJF77-Y100M4,MTJF77-Y112M4,MTJF77-Y11KW,MTJF77-Y132M4,MTJF77-Y160M4,MTJF77-Y2.2KW,MTJF77-Y3KW,MTJF77-Y4KW,MTJF77-Y5.5KW,MTJF77-Y7.5KW,MTJF77-Y71M4,MTJF77-Y80M4,MTJF77-Y90M4,MTJF77-YEJ100M4,MTJF77-YEJ112M4,MTJF77-YEJ132M4,MTJF77-YEJ160M4,MTJF77-YEJ71M4,MTJF77-YEJ80M4,MTJF77-YEJ90M4,MTJF77-YS100M4,MTJF77-YS112M4,MTJF77-YS132M4,MTJF77-YS160M4,MTJF77-YS71M4,MTJF77-YS80M4,MTJF77-YS90M4,MTJF77-YVP100M4,MTJF77-YVP112M4,MTJF77-YVP132M4,MTJF77-YVP160M4,MTJF77-YVP71M4,MTJF77-YVP80M4,MTJF77-YVP90M4,MTJF77-YVPEJ100M4,MTJF77-YVPEJ112M4,MTJF77-YVPEJ132M4,MTJF77-YVPEJ160M4,MTJF77-YVPEJ71M4,MTJF77-YVPEJ80M4,MTJF77-YVPEJ90M4,WXKF77-WSS0.25KW,WXKF77-WSS0.37KW,WXKF77-WSS0.55KW,WXKF77-WSS0.75KW,WXKF77-WSS1.1KW,WXKF77-WSS1.5KW,WXKF77-WSS100M4,WXKF77-WSS112M4,WXKF77-WSS11KW,WXKF77-WSS132M4,WXKF77-WSS160M4,WXKF77-WSS2.2KW,WXKF77-WSS3KW,WXKF77-WSS4KW,WXKF77-WSS5.5KW,WXKF77-WSS7.5KW,WXKF77-WSS71M4,WXKF77-WSS80M4,WXKF77-WSS90M4,WXKF77-WSSB100M4,WXKF77-WSSB112M4,WXKF77-WSSB132M4,WXKF77-WSSB160M4,WXKF77-WSSB71M4,WXKF77-WSSB80M4,WXKF77-WSSB90M4,WXKF77-WSSVP100M4,WXKF77-WSSVP112M4,WXKF77-WSSVP132M4,WXKF77-WSSVP160M4,WXKF77-WSSVP71M4,WXKF77-WSSVP80M4,WXKF77-WSSVP90M4,WXKF77-WSSVPB100M4,WXKF77-WSSVPB112M4,WXKF77-WSSVPB132M4,WXKF77-WSSVPB160M4,WXKF77-WSSVPB71M4,WXKF77-WSSVPB80M4,WXKF77-WSSVPB90M4。伺服電機減速機
