KF157減速機重量：KF157減速機重量612公斤，KF157減速機帶電機重量分別如下

KF157減速機帶11KW電機重量727公斤，KF157減速機帶15KW電機重量747公斤，KF157減速機帶18.5KW電機重量784公斤，KF157減速機帶22KW電機重量797公斤，KF157減速機帶30KW電機重量865公斤，KF157減速機帶37KW電機重量912公斤，KF157減速機帶45KW電機重量947公斤，KF157減速機帶55KW電機重量1032公斤，KF157減速機帶75KW電機重量1172公斤，KF157減速機帶90KW電機重量1282公斤，KF157減速機帶110KW電機重量1532公斤，KF157減速機帶132KW電機重量1662公斤，KF157減速機帶160KW電機重量1772公斤，KF157減速機帶200KW電機重量1852公斤。

KF157減速機加油量：可加合成油

KF157減速機M2方式安裝加62升，KF157減速機M1方式安裝加31升，KF157減速機M3方式安裝加65升，KF157減速機M4方式安裝加90升，KF157減速機M5方式安裝加58升，KF157減速機M6方式安裝加62升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

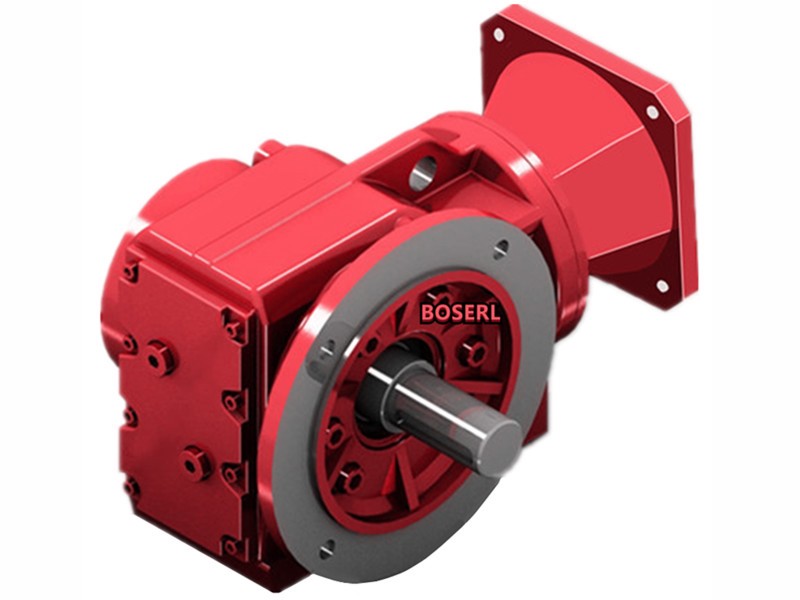

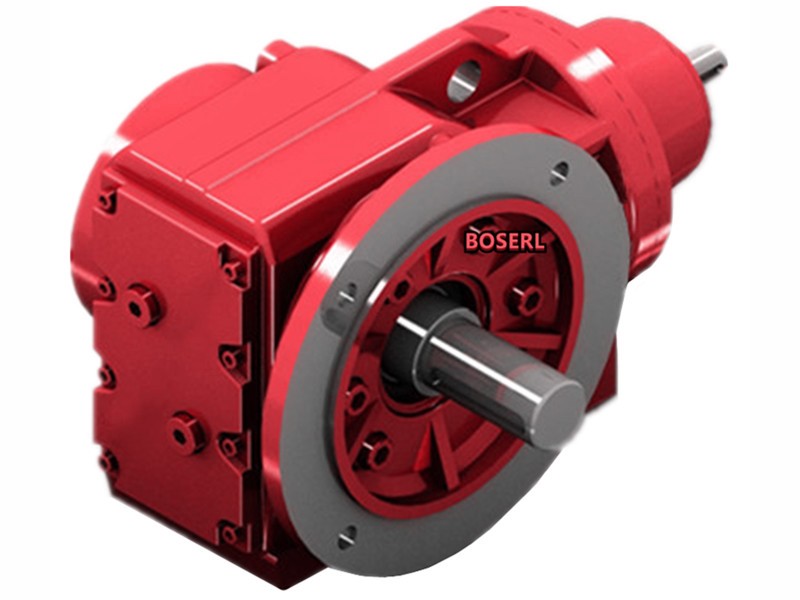

KF157減速機實物圖：圖一為KF157立式方式安裝實心軸輸出螺旋錐齒輪減速電機，圖二K157臥式方式安裝螺旋錐齒輪減速電機，圖三為KA157臥式方式安裝空心軸螺旋錐齒輪減速電機，圖四為KAF157立式方式安裝直角空心軸螺旋錐齒輪減速機。

KF157減速機型號表示方法：

KF157減速機型號結構KF157-B160KW-4P-減速比-方式安裝方式-接線盒位置。

KF157減速機性能參數表結構說明：V強制冷卻風扇，RS逆止器，C防雨罩，Input Configuration代表輸入帶置，TF電機熱保護裝置，KF157、K157、KA157、KAF157減速機機座號，N代表徑向負荷，HR手動釋放裝置，1、min代表輸出轉數，HF手動釋放裝置帶自鎖功能。

KF157減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1方式安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

KF157減速機參數：

KF157減速機輸出轉數9.3轉，11轉，14轉，15轉，18轉，20轉，23轉，26轉，30轉，37轉，45轉，51轉，58轉，66轉，76轉，94轉，111轉。（以上轉數均為四級電機算出的，可用2P、6P、8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）直角減速機

KF157減速機電機可帶單相、直流、變頻、剎車、防爆、伺服、交流、三相電機KF157帶11KW，KF157帶15KW，KF157帶18.5KW，KF157帶22KW，KF157帶30KW，KF157帶37KW，KF157帶45KW，KF157帶55KW，KF157帶75KW，KF157帶90KW，KF157帶110KW，KF157帶132KW，KF157帶160KW，KF157帶200KW。

KF157減速機輸出扭矩18000N.m，17000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

KF157減速機減速比150.41比，122.39比，100.22比，91.65比，79.75比，70.38比，61.02比，54.29比，46.79比，38.02比，31.3比，27.62比，23.95比，21.31比，18.37比，14.92比，12.65比。

KF157減速機外形尺寸：輸出軸直接Φ120（可定做）+鍵7，高750*寬770（帶輸出軸）*長706

KF157減速機型號：KF157AQA80,KF157AQA100,KF157AQA115,KF157AQA140,KF157AQA160,KF157AQA190,KF157AQH80,KF157AQH100,KF157AQH115,KF157AQH140,KF157AQH160,KF157AQH190,JRTKF157-Y110KW,JRTKF157-Y11KW,JRTKF157-Y132KW,JRTKF157-Y15KW,JRTKF157-Y160KW,JRTKF157-Y160M4,JRTKF157-Y18.5KW,JRTKF157-Y180M4,JRTKF157-Y200KW,JRTKF157-Y200M4,JRTKF157-Y225M4,JRTKF157-Y22KW,JRTKF157-Y250M4,JRTKF157-Y280M4,JRTKF157-Y30KW,JRTKF157-Y315M4,JRTKF157-Y37KW,JRTKF157-Y45KW,JRTKF157-Y55KW,JRTKF157-Y75KW,JRTKF157-Y90KW,JRTKF157-YEJ160M4,JRTKF157-YEJ180M4,JRTKF157-YEJ200M4,JRTKF157-YEJ225M4,JRTKF157-YEJ250M4,JRTKF157-YEJ280M4,JRTKF157-YEJ315M4,JRTKF157-YS160M4,JRTKF157-YS180M4,JRTKF157-YS200M4,JRTKF157-YS225M4,JRTKF157-YS250M4,JRTKF157-YS280M4,JRTKF157-YS315M4,JRTKF157-YVP160M4,JRTKF157-YVP180M4,JRTKF157-YVP200M4,JRTKF157-YVP225M4,JRTKF157-YVP250M4,JRTKF157-YVP280M4,JRTKF157-YVP315M4,JRTKF157-YVPEJ160M4,JRTKF157-YVPEJ180M4,JRTKF157-YVPEJ200M4,JRTKF157-YVPEJ225M4,JRTKF157-YVPEJ250M4,JRTKF157-YVPEJ280M4,JRTKF157-YVPEJ315M4,EWKF157-Y110KW,EWKF157-Y11KW,EWKF157-Y132KW,EWKF157-Y15KW,EWKF157-Y160KW,EWKF157-Y160M4,EWKF157-Y18.5KW,EWKF157-Y180M4,EWKF157-Y200KW,EWKF157-Y200M4,EWKF157-Y225M4,EWKF157-Y22KW,EWKF157-Y250M4,EWKF157-Y280M4,EWKF157-Y30KW,EWKF157-Y315M4,EWKF157-Y37KW,EWKF157-Y45KW,EWKF157-Y55KW,EWKF157-Y75KW,EWKF157-Y90KW,EWKF157-YEJ160M4,EWKF157-YEJ180M4,EWKF157-YEJ200M4,EWKF157-YEJ225M4,EWKF157-YEJ250M4,EWKF157-YEJ280M4,EWKF157-YEJ315M4,EWKF157-YS160M4,EWKF157-YS180M4,EWKF157-YS200M4,EWKF157-YS225M4,EWKF157-YS250M4,EWKF157-YS280M4,EWKF157-YS315M4,EWKF157-YVP160M4,EWKF157-YVP180M4,EWKF157-YVP200M4,EWKF157-YVP225M4,EWKF157-YVP250M4,EWKF157-YVP280M4,EWKF157-YVP315M4,EWKF157-YVPEJ160M4,EWKF157-YVPEJ180M4,EWKF157-YVPEJ200M4,EWKF157-YVPEJ225M4,EWKF157-YVPEJ250M4,EWKF157-YVPEJ280M4,EWKF157-YVPEJ315M4,SLKF157-Y110KW,SLKF157-Y11KW,SLKF157-Y132KW,SLKF157-Y15KW,SLKF157-Y160KW,SLKF157-Y160M4,SLKF157-Y18.5KW,SLKF157-Y180M4,SLKF157-Y200KW,SLKF157-Y200M4,SLKF157-Y225M4,SLKF157-Y22KW,SLKF157-Y250M4,SLKF157-Y280M4,SLKF157-Y30KW,SLKF157-Y315M4,SLKF157-Y37KW,SLKF157-Y45KW,SLKF157-Y55KW,SLKF157-Y75KW,SLKF157-Y90KW,SLKF157-YEJ160M4,SLKF157-YEJ180M4,SLKF157-YEJ200M4,SLKF157-YEJ225M4,SLKF157-YEJ250M4,SLKF157-YEJ280M4,SLKF157-YEJ315M4,SLKF157-YS160M4,SLKF157-YS180M4,SLKF157-YS200M4,SLKF157-YS225M4,SLKF157-YS250M4,SLKF157-YS280M4,SLKF157-YS315M4,SLKF157-YVP160M4,SLKF157-YVP180M4,SLKF157-YVP200M4,SLKF157-YVP225M4,SLKF157-YVP250M4,SLKF157-YVP280M4,SLKF157-YVP315M4,SLKF157-YVPEJ160M4,SLKF157-YVPEJ180M4,SLKF157-YVPEJ200M4,SLKF157-YVPEJ225M4,SLKF157-YVPEJ250M4,SLKF157-YVPEJ280M4,SLKF157-YVPEJ315M4,DSZKF157-Y110KW,DSZKF157-Y11KW,DSZKF157-Y132KW,DSZKF157-Y15KW,DSZKF157-Y160KW,DSZKF157-Y160M4,DSZKF157-Y18.5KW,DSZKF157-Y180M4,DSZKF157-Y200KW,DSZKF157-Y200M4,DSZKF157-Y225M4,DSZKF157-Y22KW,DSZKF157-Y250M4,DSZKF157-Y280M4,DSZKF157-Y30KW,DSZKF157-Y315M4,DSZKF157-Y37KW,DSZKF157-Y45KW,DSZKF157-Y55KW,DSZKF157-Y75KW,DSZKF157-Y90KW,DSZKF157-YEJ160M4,DSZKF157-YEJ180M4,DSZKF157-YEJ200M4,DSZKF157-YEJ225M4,DSZKF157-YEJ250M4,DSZKF157-YEJ280M4,DSZKF157-YEJ315M4,DSZKF157-YS160M4,DSZKF157-YS180M4,DSZKF157-YS200M4,DSZKF157-YS225M4,DSZKF157-YS250M4,DSZKF157-YS280M4,DSZKF157-YS315M4,DSZKF157-YVP160M4,DSZKF157-YVP180M4,DSZKF157-YVP200M4,DSZKF157-YVP225M4,DSZKF157-YVP250M4,DSZKF157-YVP280M4,DSZKF157-YVP315M4,DSZKF157-YVPEJ160M4,DSZKF157-YVPEJ180M4,DSZKF157-YVPEJ200M4,DSZKF157-YVPEJ225M4,DSZKF157-YVPEJ250M4,DSZKF157-YVPEJ280M4,DSZKF157-YVPEJ315M4,BKF157-Y110KW,BKF157-Y11KW,BKF157-Y132KW,BKF157-Y15KW,BKF157-Y160KW,BKF157-Y160M4,BKF157-Y18.5KW,BKF157-Y180M4,BKF157-Y200KW,BKF157-Y200M4,BKF157-Y225M4,BKF157-Y22KW,BKF157-Y250M4,BKF157-Y280M4,BKF157-Y30KW,BKF157-Y315M4,BKF157-Y37KW,BKF157-Y45KW,BKF157-Y55KW,BKF157-Y75KW,BKF157-Y90KW,BKF157-YEJ160M4,BKF157-YEJ180M4,BKF157-YEJ200M4,BKF157-YEJ225M4,BKF157-YEJ250M4,BKF157-YEJ280M4,BKF157-YEJ315M4,BKF157-YS160M4,BKF157-YS180M4,BKF157-YS200M4,BKF157-YS225M4,BKF157-YS250M4,BKF157-YS280M4,BKF157-YS315M4,BKF157-YVP160M4,BKF157-YVP180M4,BKF157-YVP200M4,BKF157-YVP225M4,BKF157-YVP250M4,BKF157-YVP280M4,BKF157-YVP315M4,BKF157-YVPEJ160M4,BKF157-YVPEJ180M4,BKF157-YVPEJ200M4,BKF157-YVPEJ225M4,BKF157-YVPEJ250M4,BKF157-YVPEJ280M4,BKF157-YVPEJ315M4,GKF157-Y110KW,GKF157-Y11KW,GKF157-Y132KW,GKF157-Y15KW,GKF157-Y160KW,GKF157-Y160M4,GKF157-Y18.5KW,GKF157-Y180M4,GKF157-Y200KW,GKF157-Y200M4,GKF157-Y225M4,GKF157-Y22KW,GKF157-Y250M4,GKF157-Y280M4,GKF157-Y30KW,GKF157-Y315M4,GKF157-Y37KW,GKF157-Y45KW,GKF157-Y55KW,GKF157-Y75KW,GKF157-Y90KW,GKF157-YEJ160M4,GKF157-YEJ180M4,GKF157-YEJ200M4,GKF157-YEJ225M4,GKF157-YEJ250M4,GKF157-YEJ280M4,GKF157-YEJ315M4,GKF157-YS160M4,GKF157-YS180M4,GKF157-YS200M4,GKF157-YS225M4,GKF157-YS250M4,GKF157-YS280M4,GKF157-YS315M4,GKF157-YVP160M4,GKF157-YVP180M4,GKF157-YVP200M4,GKF157-YVP225M4,GKF157-YVP250M4,GKF157-YVP280M4,GKF157-YVP315M4,GKF157-YVPEJ160M4,GKF157-YVPEJ180M4,GKF157-YVPEJ200M4,GKF157-YVPEJ225M4,GKF157-YVPEJ250M4,GKF157-YVPEJ280M4,GKF157-YVPEJ315M4,KCF157-Y110KW,KCF157-Y11KW,KCF157-Y132KW,KCF157-Y15KW,KCF157-Y160KW,KCF157-Y160M4,KCF157-Y18.5KW,KCF157-Y180M4,KCF157-Y200KW,KCF157-Y200M4,KCF157-Y225M4,KCF157-Y22KW,KCF157-Y250M4,KCF157-Y280M4,KCF157-Y30KW,KCF157-Y315M4,KCF157-Y37KW,KCF157-Y45KW,KCF157-Y55KW,KCF157-Y75KW,KCF157-Y90KW,KCF157-YEJ160M4,KCF157-YEJ180M4,KCF157-YEJ200M4,KCF157-YEJ225M4,KCF157-YEJ250M4,KCF157-YEJ280M4,KCF157-YEJ315M4,KCF157-YS160M4,KCF157-YS180M4,KCF157-YS200M4,KCF157-YS225M4,KCF157-YS250M4,KCF157-YS280M4,KCF157-YS315M4,KCF157-YVP160M4,KCF157-YVP180M4,KCF157-YVP200M4,KCF157-YVP225M4,KCF157-YVP250M4,KCF157-YVP280M4,KCF157-YVP315M4,KCF157-YVPEJ160M4,KCF157-YVPEJ180M4,KCF157-YVPEJ200M4,KCF157-YVPEJ225M4,KCF157-YVPEJ250M4,KCF157-YVPEJ280M4,KCF157-YVPEJ315M4,MTJF157-Y110KW,MTJF157-Y11KW,MTJF157-Y132KW,MTJF157-Y15KW,MTJF157-Y160KW,MTJF157-Y160M4,MTJF157-Y18.5KW,MTJF157-Y180M4,MTJF157-Y200KW,MTJF157-Y200M4,MTJF157-Y225M4,MTJF157-Y22KW,MTJF157-Y250M4,MTJF157-Y280M4,MTJF157-Y30KW,MTJF157-Y315M4,MTJF157-Y37KW,MTJF157-Y45KW,MTJF157-Y55KW,MTJF157-Y75KW,MTJF157-Y90KW,MTJF157-YEJ160M4,MTJF157-YEJ180M4,MTJF157-YEJ200M4,MTJF157-YEJ225M4,MTJF157-YEJ250M4,MTJF157-YEJ280M4,MTJF157-YEJ315M4,MTJF157-YS160M4,MTJF157-YS180M4,MTJF157-YS200M4,MTJF157-YS225M4,MTJF157-YS250M4,MTJF157-YS280M4,MTJF157-YS315M4,MTJF157-YVP160M4,MTJF157-YVP180M4,MTJF157-YVP200M4,MTJF157-YVP225M4,MTJF157-YVP250M4,MTJF157-YVP280M4,MTJF157-YVP315M4,MTJF157-YVPEJ160M4,MTJF157-YVPEJ180M4,MTJF157-YVPEJ200M4,MTJF157-YVPEJ225M4,MTJF157-YVPEJ250M4,MTJF157-YVPEJ280M4,MTJF157-YVPEJ315M4,WXKF157-WSS110KW,WXKF157-WSS11KW,WXKF157-WSS132KW,WXKF157-WSS15KW,WXKF157-WSS160KW,WXKF157-WSS160M4,WXKF157-WSS18.5KW,WXKF157-WSS180M4,WXKF157-WSS200KW,WXKF157-WSS200M4,WXKF157-WSS225M4,WXKF157-WSS22KW,WXKF157-WSS250M4,WXKF157-WSS280M4,WXKF157-WSS30KW,WXKF157-WSS315M4,WXKF157-WSS37KW,WXKF157-WSS45KW,WXKF157-WSS55KW,WXKF157-WSS75KW,WXKF157-WSS90KW,WXKF157-WSSB160M4,WXKF157-WSSB180M4,WXKF157-WSSB200M4,WXKF157-WSSB225M4,WXKF157-WSSB250M4,WXKF157-WSSB280M4,WXKF157-WSSB315M4,WXKF157-WSSVP160M4,WXKF157-WSSVP180M4,WXKF157-WSSVP200M4,WXKF157-WSSVP225M4,WXKF157-WSSVP250M4,WXKF157-WSSVP280M4,WXKF157-WSSVP315M4,WXKF157-WSSVPB160M4,WXKF157-WSSVPB180M4,WXKF157-WSSVPB200M4,WXKF157-WSSVPB225M4,WXKF157-WSSVPB250M4,WXKF157-WSSVPB280M4,WXKF157-WSSVPB315M4。伺服電機減速機

KF157減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.goto53.com/product/list-kfxiliejiansuji-cn.html

推薦類似型號：K157減速機
