K37減速機重量：K37減速機重量11公斤，K37減速機配電機重量分別如下

K37減速機配0.12KW電機重量16.5公斤，K37減速機配0.18KW電機重量17公斤，K37減速機配0.25KW電機重量21公斤，K37減速機配0.37KW電機重量21.5公斤，K37減速機配0.55KW電機重量26公斤，K37減速機配0.75KW電機重量27公斤，K37減速機配1.1KW電機重量31公斤，K37減速機配1.5KW電機重量34公斤，K37減速機配2.2KW電機重量43公斤，K37減速機配3KW電機重量46公斤。K系列減速機

K37減速機加油量：可加礦物油

K37減速機M1安裝加0.5升，K37減速機M2安裝加1升，K37減速機M3安裝加1升，K37減速機M4安裝加1.25升，K37減速機M5安裝加0.95升，K37減速機M6安裝加0.95升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

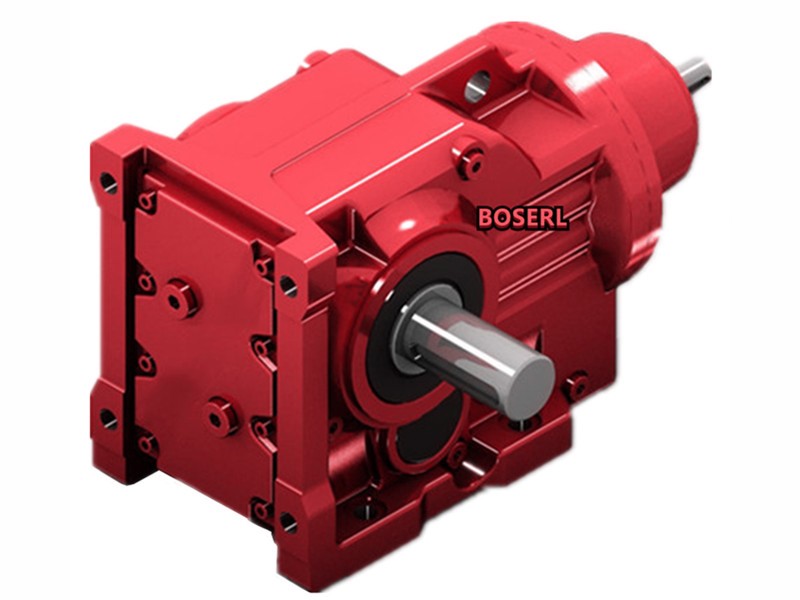

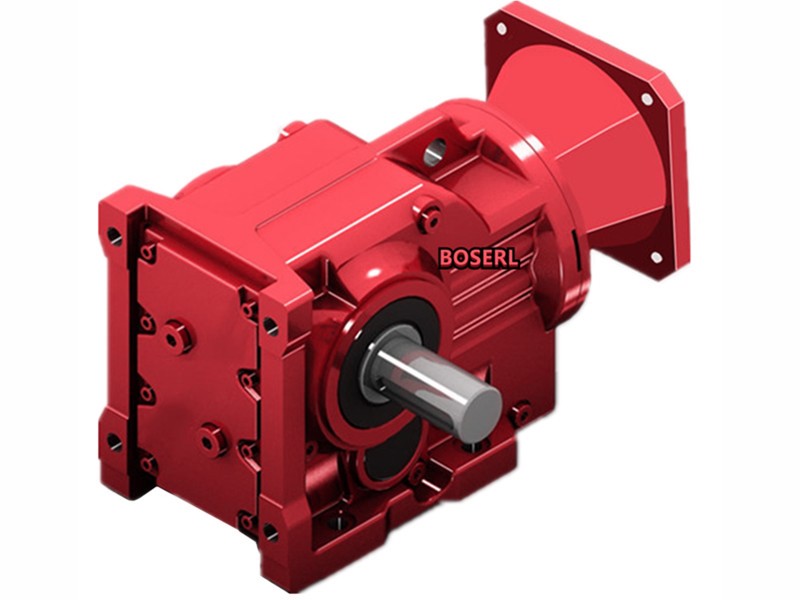

K37減速機實物圖：圖一為K37臥式安裝螺旋錐齒輪減速電機，圖二KF37立式安裝實心軸輸出螺旋錐齒輪減速電機，圖三為KA37臥式安裝空心軸螺旋錐齒輪減速電機，圖四為KAF37立式安裝直角空心軸螺旋錐齒輪減速機。

K37減速機型號表示方法：

K37減速機型號結構K37-B3KW-4P-減速比-安裝方式-接線盒位置。

K37減速機性能參數表結構說明：RS逆止器，V強制冷卻風扇，C防雨罩，Input Configuration代表輸入配置，TF電機熱保護裝置，K37、KF37、KA37、KAF37減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置帶自鎖功能。直角減速機

K37減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向?yàn)?從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

K37減速機結構圖：

K37減速機參數：

K37減速機電機可配單相/直流/變頻/剎車/防爆/伺服/交流/三相電機K37配0.12KW，K37配0.18KW，K37配0.25KW，K37配0.37KW，K37配0.55KW，K37配0.75KW，K37配1.1KW，K37配1.5KW，K37配2.2KW，K37配3KW。

K37減速機減速比106.38比，97.81比，83.69比，72.54比，67.80比，58.60比，49.79比，44.46比，37.97比，35.57比，29.96比，28.83比，24.99比，23.36比，20.19比，17.15比，15.31比，13.08比，12.14比，10.49比，8.91比，7.96比，6.8比，6.37比，5.36比，3.98比。

K37減速機輸出轉數13轉，14轉，17轉，19轉，21轉，24轉，28轉，31轉，37轉，39轉，47轉，49轉，56轉，60轉，69轉，82轉，91轉，107轉，115轉，133轉，157轉，176轉，206轉，220轉，261轉，352轉。（以上轉數均為四級電機算出的，可用2P/6P/8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

K37減速機輸出扭矩200N.m，195N.m，185N.m，180N.m，175N.m，165N.m，160N.m，155N.m，150N.m，145N.m，140N.m，125N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

K37減速機尺寸圖紙：高165*寬170（帶輸出軸）*長220

K37減速機型號：K37AQA80,K37AQA100,K37AQA115,K37AQA140,K37AQA160,K37AQA190,K37AQH80,K37AQH100,K37AQH115,K37AQH140,K37AQH160,K37AQH190,JRTK37-Y0.12KW,JRTK37-Y0.18KW,JRTK37-Y0.25KW,JRTK37-Y0.37KW,JRTK37-Y0.55KW,JRTK37-Y0.75KW,JRTK37-Y1.1KW,JRTK37-Y1.5KW,JRTK37-Y100M4,JRTK37-Y2.2KW,JRTK37-Y3KW,JRTK37-Y63M4,JRTK37-Y71M4,JRTK37-Y80M4,JRTK37-Y90M4,JRTK37-YEJ100M4,JRTK37-YEJ63M4,JRTK37-YEJ71M4,JRTK37-YEJ80M4,JRTK37-YEJ90M4,JRTK37-YS100M4,JRTK37-YS63M4,JRTK37-YS71M4,JRTK37-YS80M4,JRTK37-YS90M4,JRTK37-YVP100M4,JRTK37-YVP63M4,JRTK37-YVP71M4,JRTK37-YVP80M4,JRTK37-YVP90M4,JRTK37-YVPEJ100M4,JRTK37-YVPEJ63M4,JRTK37-YVPEJ71M4,JRTK37-YVPEJ80M4,JRTK37-YVPEJ90M4,EWK37-Y0.12KW,EWK37-Y0.18KW,EWK37-Y0.25KW,EWK37-Y0.37KW,EWK37-Y0.55KW,EWK37-Y0.75KW,EWK37-Y1.1KW,EWK37-Y1.5KW,EWK37-Y100M4,EWK37-Y2.2KW,EWK37-Y3KW,EWK37-Y63M4,EWK37-Y71M4,EWK37-Y80M4,EWK37-Y90M4,EWK37-YEJ100M4,EWK37-YEJ63M4,EWK37-YEJ71M4,EWK37-YEJ80M4,EWK37-YEJ90M4,EWK37-YS100M4,EWK37-YS63M4,EWK37-YS71M4,EWK37-YS80M4,EWK37-YS90M4,EWK37-YVP100M4,EWK37-YVP63M4,EWK37-YVP71M4,EWK37-YVP80M4,EWK37-YVP90M4,EWK37-YVPEJ100M4,EWK37-YVPEJ63M4,EWK37-YVPEJ71M4,EWK37-YVPEJ80M4,EWK37-YVPEJ90M4,SLK37-Y0.12KW,SLK37-Y0.18KW,SLK37-Y0.25KW,SLK37-Y0.37KW,SLK37-Y0.55KW,SLK37-Y0.75KW,SLK37-Y1.1KW,SLK37-Y1.5KW,SLK37-Y100M4,SLK37-Y2.2KW,SLK37-Y3KW,SLK37-Y63M4,SLK37-Y71M4,SLK37-Y80M4,SLK37-Y90M4,SLK37-YEJ100M4,SLK37-YEJ63M4,SLK37-YEJ71M4,SLK37-YEJ80M4,SLK37-YEJ90M4,SLK37-YS100M4,SLK37-YS63M4,SLK37-YS71M4,SLK37-YS80M4,SLK37-YS90M4,SLK37-YVP100M4,SLK37-YVP63M4,SLK37-YVP71M4,SLK37-YVP80M4,SLK37-YVP90M4,SLK37-YVPEJ100M4,SLK37-YVPEJ63M4,SLK37-YVPEJ71M4,SLK37-YVPEJ80M4,SLK37-YVPEJ90M4,DSZK37-Y0.12KW,DSZK37-Y0.18KW,DSZK37-Y0.25KW,DSZK37-Y0.37KW,DSZK37-Y0.55KW,DSZK37-Y0.75KW,DSZK37-Y1.1KW,DSZK37-Y1.5KW,DSZK37-Y100M4,DSZK37-Y2.2KW,DSZK37-Y3KW,DSZK37-Y63M4,DSZK37-Y71M4,DSZK37-Y80M4,DSZK37-Y90M4,DSZK37-YEJ100M4,DSZK37-YEJ63M4,DSZK37-YEJ71M4,DSZK37-YEJ80M4,DSZK37-YEJ90M4,DSZK37-YS100M4,DSZK37-YS63M4,DSZK37-YS71M4,DSZK37-YS80M4,DSZK37-YS90M4,DSZK37-YVP100M4,DSZK37-YVP63M4,DSZK37-YVP71M4,DSZK37-YVP80M4,DSZK37-YVP90M4,DSZK37-YVPEJ100M4,DSZK37-YVPEJ63M4,DSZK37-YVPEJ71M4,DSZK37-YVPEJ80M4,DSZK37-YVPEJ90M4,BK37-Y0.12KW,BK37-Y0.18KW,BK37-Y0.25KW,BK37-Y0.37KW,BK37-Y0.55KW,BK37-Y0.75KW,BK37-Y1.1KW,BK37-Y1.5KW,BK37-Y100M4,BK37-Y2.2KW,BK37-Y3KW,BK37-Y63M4,BK37-Y71M4,BK37-Y80M4,BK37-Y90M4,BK37-YEJ100M4,BK37-YEJ63M4,BK37-YEJ71M4,BK37-YEJ80M4,BK37-YEJ90M4,BK37-YS100M4,BK37-YS63M4,BK37-YS71M4,BK37-YS80M4,BK37-YS90M4,BK37-YVP100M4,BK37-YVP63M4,BK37-YVP71M4,BK37-YVP80M4,BK37-YVP90M4,BK37-YVPEJ100M4,BK37-YVPEJ63M4,BK37-YVPEJ71M4,BK37-YVPEJ80M4,BK37-YVPEJ90M4,GK37-Y0.12KW,GK37-Y0.18KW,GK37-Y0.25KW,GK37-Y0.37KW,GK37-Y0.55KW,GK37-Y0.75KW,GK37-Y1.1KW,GK37-Y1.5KW,GK37-Y100M4,GK37-Y2.2KW,GK37-Y3KW,GK37-Y63M4,GK37-Y71M4,GK37-Y80M4,GK37-Y90M4,GK37-YEJ100M4,GK37-YEJ63M4,GK37-YEJ71M4,GK37-YEJ80M4,GK37-YEJ90M4,GK37-YS100M4,GK37-YS63M4,GK37-YS71M4,GK37-YS80M4,GK37-YS90M4,GK37-YVP100M4,GK37-YVP63M4,GK37-YVP71M4,GK37-YVP80M4,GK37-YVP90M4,GK37-YVPEJ100M4,GK37-YVPEJ63M4,GK37-YVPEJ71M4,GK37-YVPEJ80M4,GK37-YVPEJ90M4,KC37-Y0.12KW,KC37-Y0.18KW,KC37-Y0.25KW,KC37-Y0.37KW,KC37-Y0.55KW,KC37-Y0.75KW,KC37-Y1.1KW,KC37-Y1.5KW,KC37-Y100M4,KC37-Y2.2KW,KC37-Y3KW,KC37-Y63M4,KC37-Y71M4,KC37-Y80M4,KC37-Y90M4,KC37-YEJ100M4,KC37-YEJ63M4,KC37-YEJ71M4,KC37-YEJ80M4,KC37-YEJ90M4,KC37-YS100M4,KC37-YS63M4,KC37-YS71M4,KC37-YS80M4,KC37-YS90M4,KC37-YVP100M4,KC37-YVP63M4,KC37-YVP71M4,KC37-YVP80M4,KC37-YVP90M4,KC37-YVPEJ100M4,KC37-YVPEJ63M4,KC37-YVPEJ71M4,KC37-YVPEJ80M4,KC37-YVPEJ90M4,MTJ37-Y0.12KW,MTJ37-Y0.18KW,MTJ37-Y0.25KW,MTJ37-Y0.37KW,MTJ37-Y0.55KW,MTJ37-Y0.75KW,MTJ37-Y1.1KW,MTJ37-Y1.5KW,MTJ37-Y100M4,MTJ37-Y2.2KW,MTJ37-Y3KW,MTJ37-Y63M4,MTJ37-Y71M4,MTJ37-Y80M4,MTJ37-Y90M4,MTJ37-YEJ100M4,MTJ37-YEJ63M4,MTJ37-YEJ71M4,MTJ37-YEJ80M4,MTJ37-YEJ90M4,MTJ37-YS100M4,MTJ37-YS63M4,MTJ37-YS71M4,MTJ37-YS80M4,MTJ37-YS90M4,MTJ37-YVP100M4,MTJ37-YVP63M4,MTJ37-YVP71M4,MTJ37-YVP80M4,MTJ37-YVP90M4,MTJ37-YVPEJ100M4,MTJ37-YVPEJ63M4,MTJ37-YVPEJ71M4,MTJ37-YVPEJ80M4,MTJ37-YVPEJ90M4,WXK37-WSS0.12KW,WXK37-WSS0.18KW,WXK37-WSS0.25KW,WXK37-WSS0.37KW,WXK37-WSS0.55KW,WXK37-WSS0.75KW,WXK37-WSS1.1KW,WXK37-WSS1.5KW,WXK37-WSS100M4,WXK37-WSS2.2KW,WXK37-WSS3KW,WXK37-WSS63M4,WXK37-WSS71M4,WXK37-WSS80M4,WXK37-WSS90M4,WXK37-WSSB100M4,WXK37-WSSB63M4,WXK37-WSSB71M4,WXK37-WSSB80M4,WXK37-WSSB90M4,WXK37-WSSVP100M4,WXK37-WSSVP63M4,WXK37-WSSVP71M4,WXK37-WSSVP80M4,WXK37-WSSVP90M4,WXK37-WSSVPB100M4,WXK37-WSSVPB63M4,WXK37-WSSVPB71M4,WXK37-WSSVPB80M4,WXK37-WSSVPB90M4。
