F127減速機重量：F127減速機重量700公斤，F(xiàn)127減速機配電機重量分別如下

F127減速機配7.5KW電機重量773公斤，F(xiàn)127減速機配11KW電機重量815公斤，F(xiàn)127減速機配15KW電機重量835公斤，F(xiàn)127減速機配18.5KW電機重量872公斤，F(xiàn)127減速機配22KW電機重量885公斤，F(xiàn)127減速機配30KW電機重量953公斤，F(xiàn)127減速機配37KW電機重量1000公斤，F(xiàn)127減速機配45KW電機重量1035公斤，F(xiàn)127減速機配55KW電機重量1120公斤，F(xiàn)127減速機配75KW電機重量1260公斤，F(xiàn)127減速機配90KW電機重量1370公斤。齒輪減速機

F127減速機加油量：可加礦物油

F127減速機M1安裝加40.5升，F(xiàn)127減速機M2安裝加55升，F(xiàn)127減速機M3安裝加34升，F(xiàn)127減速機M4安裝加61升，F(xiàn)127減速機M5安裝加46.3升，F(xiàn)127減速機M6安裝加47升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

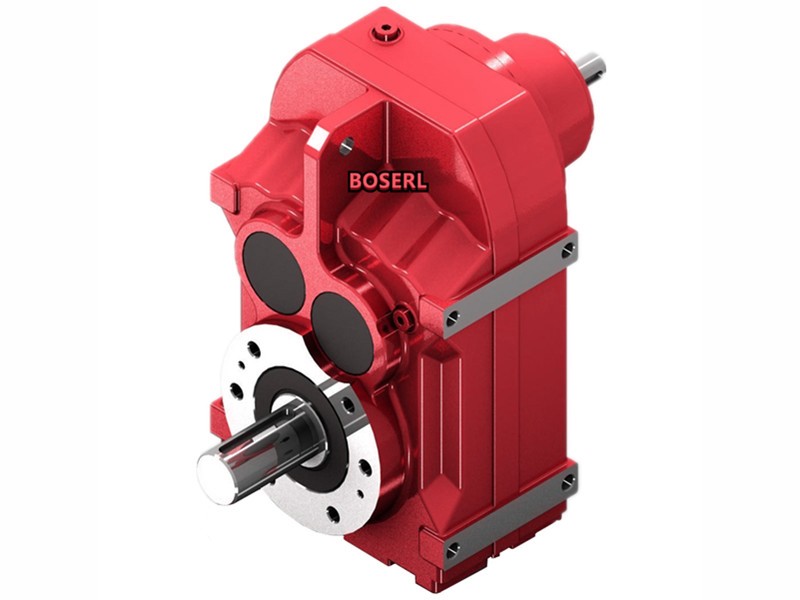

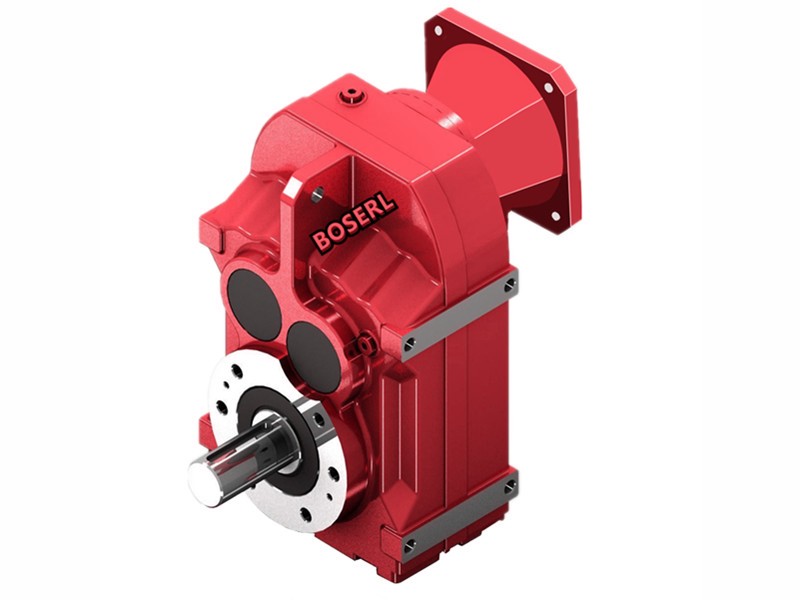

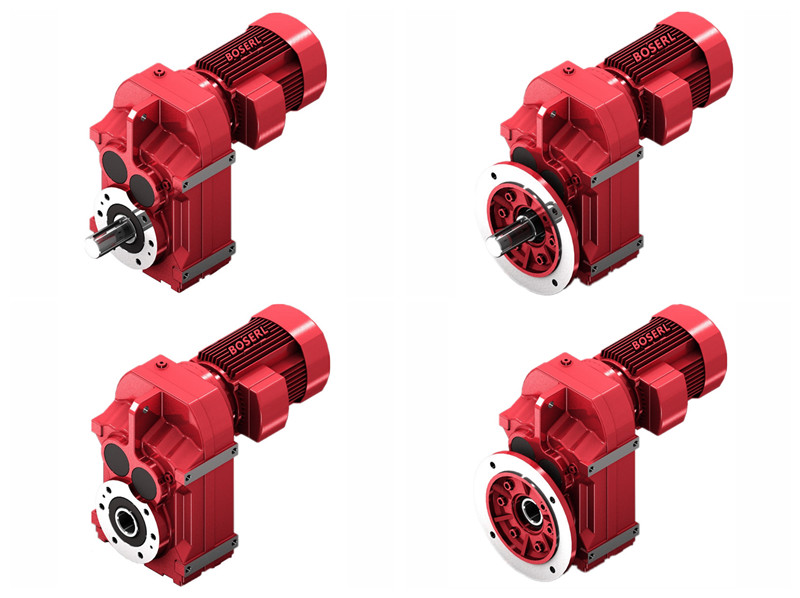

F127減速機實物圖：圖一為F127底腳安裝軸輸出平行軸減速機，圖二FF127立式法蘭軸輸出平行軸斜齒輪減速機，圖三為FA127臥式孔輸出平行軸減速機，圖四為FAF127立式法蘭孔輸出平行軸斜齒輪減速機。

F127減速機型號表示方法：

F127減速機型號結構F127-B90KW-4P-減速比-安裝方式-接線盒位置。

F127減速機性能參數表結構說明：F127、FF127、FA127、FAF127減速機機座號，HF手動釋放裝置帶自鎖功能，HR手動釋放裝置，TF電機熱保護裝置，N代表徑向負荷，KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩。

F127減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位，其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

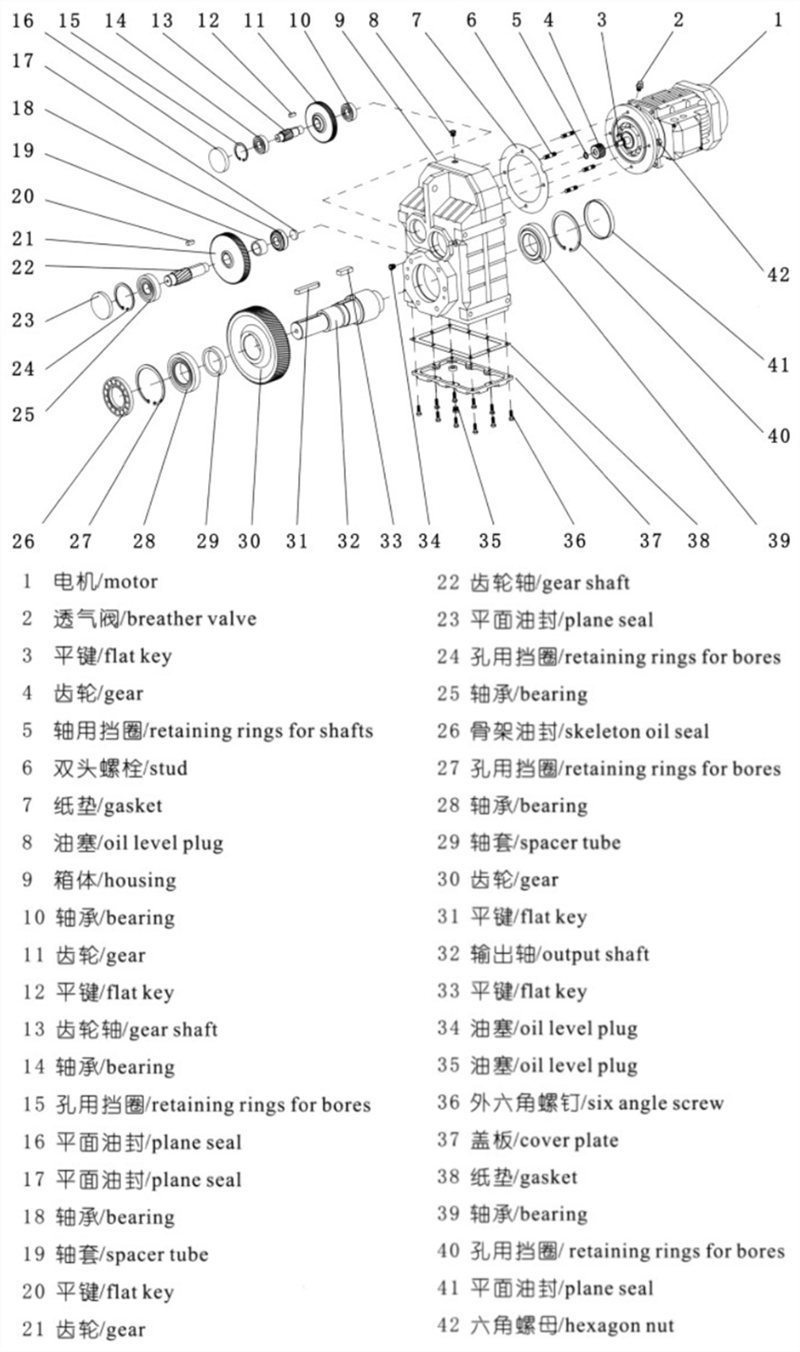

F127減速機結構圖：

F127減速機參數：

F127減速機電機可配直流/變頻/剎車/防爆/伺服/交流/三相/單相電機F127配7.5KW，F(xiàn)127配11KW，F(xiàn)127配15KW，F(xiàn)127配18.5KW，F(xiàn)127配22KW，F(xiàn)127配30KW，F(xiàn)127配37KW，F(xiàn)127配45KW，F(xiàn)127配55KW，F(xiàn)127配75KW，F(xiàn)127配90KW。

F127減速機減速比1:170，1:153，1:125，1:114，1:98，1:87，1:75，1:70，1:63，1:55，1:48，1:42，1:37，1:31，1:25，1:26，1:24，1:21，1:18，1:16，1:14，1:12，1:10，1:8，1:7，1:6，1:5，1:4。

F127減速機輸出轉數8.2轉，9.1轉，11轉，12轉，14轉，16轉，19轉，20轉，22轉，25轉，29轉，33轉，38轉，45轉，55轉，52轉，57轉，65轉，74轉，86轉，96轉，112轉，137轉，158轉，178轉，206轉，254轉，299轉。（以上轉數均為四級電機算出的，可用2P/6P/8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

F127減速機輸出扭矩12000N.m，11000N.m，10000N.m，9500N.m，8500N.m，7000N.m，6000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

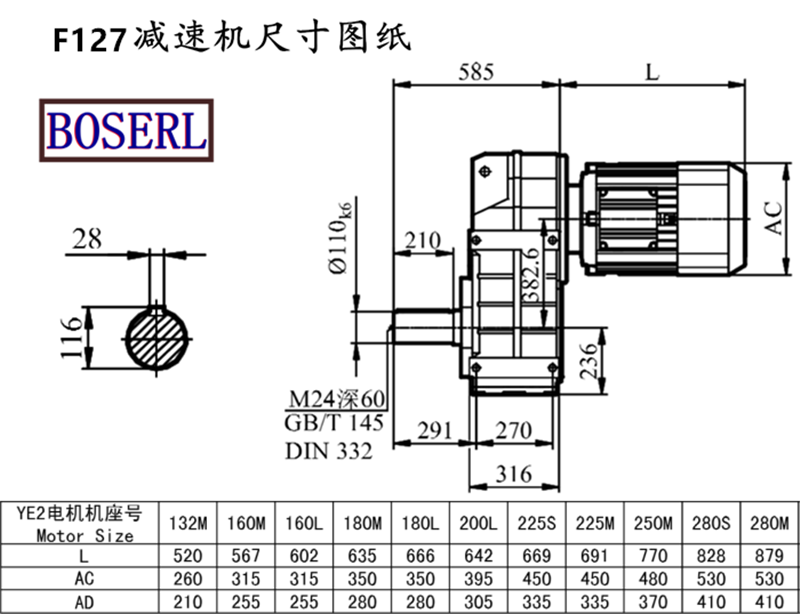

F127減速機尺寸圖紙：高856*寬530*長585（帶輸出軸）F系列減速機

F127減速機型號：

F127AQA80,F127AQA100,F127AQA115,F127AQA140,F127AQA160,F127AQA190,F127AQH80,F127AQH100,F127AQH115,F127AQH140,F127AQH160,F127AQH190,JRTF127-Y11KW,JRTF127-Y132M4,JRTF127-Y15KW,JRTF127-Y160M4,JRTF127-Y18.5KW,JRTF127-Y180M4,JRTF127-Y200M4,JRTF127-Y225M4,JRTF127-Y22KW,JRTF127-Y250M4,JRTF127-Y280M4,JRTF127-Y30KW,JRTF127-Y37KW,JRTF127-Y45KW,JRTF127-Y55KW,JRTF127-Y7.5KW,JRTF127-Y75KW,JRTF127-Y90KW,JRTF127-YEJ132M4,JRTF127-YEJ160M4,JRTF127-YEJ180M4,JRTF127-YEJ200M4,JRTF127-YEJ225M4,JRTF127-YEJ250M4,JRTF127-YEJ280M4,JRTF127-YS132M4,JRTF127-YS160M4,JRTF127-YS180M4,JRTF127-YS200M4,JRTF127-YS225M4,JRTF127-YS250M4,JRTF127-YS280M4,JRTF127-YVP132M4,JRTF127-YVP160M4,JRTF127-YVP180M4,JRTF127-YVP200M4,JRTF127-YVP225M4,JRTF127-YVP250M4,JRTF127-YVP280M4,JRTF127-YVPEJ132M4,JRTF127-YVPEJ160M4,JRTF127-YVPEJ180M4,JRTF127-YVPEJ200M4,JRTF127-YVPEJ225M4,JRTF127-YVPEJ250M4,JRTF127-YVPEJ280M4,EWF127-Y11KW,EWF127-Y132M4,EWF127-Y15KW,EWF127-Y160M4,EWF127-Y18.5KW,EWF127-Y180M4,EWF127-Y200M4,EWF127-Y225M4,EWF127-Y22KW,EWF127-Y250M4,EWF127-Y280M4,EWF127-Y30KW,EWF127-Y37KW,EWF127-Y45KW,EWF127-Y55KW,EWF127-Y7.5KW,EWF127-Y75KW,EWF127-Y90KW,EWF127-YEJ132M4,EWF127-YEJ160M4,EWF127-YEJ180M4,EWF127-YEJ200M4,EWF127-YEJ225M4,EWF127-YEJ250M4,EWF127-YEJ280M4,EWF127-YS132M4,EWF127-YS160M4,EWF127-YS180M4,EWF127-YS200M4,EWF127-YS225M4,EWF127-YS250M4,EWF127-YS280M4,EWF127-YVP132M4,EWF127-YVP160M4,EWF127-YVP180M4,EWF127-YVP200M4,EWF127-YVP225M4,EWF127-YVP250M4,EWF127-YVP280M4,EWF127-YVPEJ132M4,EWF127-YVPEJ160M4,EWF127-YVPEJ180M4,EWF127-YVPEJ200M4,EWF127-YVPEJ225M4,EWF127-YVPEJ250M4,EWF127-YVPEJ280M4,SLF127-Y11KW,SLF127-Y132M4,SLF127-Y15KW,SLF127-Y160M4,SLF127-Y18.5KW,SLF127-Y180M4,SLF127-Y200M4,SLF127-Y225M4,SLF127-Y22KW,SLF127-Y250M4,SLF127-Y280M4,SLF127-Y30KW,SLF127-Y37KW,SLF127-Y45KW,SLF127-Y55KW,SLF127-Y7.5KW,SLF127-Y75KW,SLF127-Y90KW,SLF127-YEJ132M4,SLF127-YEJ160M4,SLF127-YEJ180M4,SLF127-YEJ200M4,SLF127-YEJ225M4,SLF127-YEJ250M4,SLF127-YEJ280M4,SLF127-YS132M4,SLF127-YS160M4,SLF127-YS180M4,SLF127-YS200M4,SLF127-YS225M4,SLF127-YS250M4,SLF127-YS280M4,SLF127-YVP132M4,SLF127-YVP160M4,SLF127-YVP180M4,SLF127-YVP200M4,SLF127-YVP225M4,SLF127-YVP250M4,SLF127-YVP280M4,SLF127-YVPEJ132M4,SLF127-YVPEJ160M4,SLF127-YVPEJ180M4,SLF127-YVPEJ200M4,SLF127-YVPEJ225M4,SLF127-YVPEJ250M4,SLF127-YVPEJ280M4,DSZF127-Y11KW,DSZF127-Y132M4,DSZF127-Y15KW,DSZF127-Y160M4,DSZF127-Y18.5KW,DSZF127-Y180M4,DSZF127-Y200M4,DSZF127-Y225M4,DSZF127-Y22KW,DSZF127-Y250M4,DSZF127-Y280M4,DSZF127-Y30KW,DSZF127-Y37KW,DSZF127-Y45KW,DSZF127-Y55KW,DSZF127-Y7.5KW,DSZF127-Y75KW,DSZF127-Y90KW,DSZF127-YEJ132M4,DSZF127-YEJ160M4,DSZF127-YEJ180M4,DSZF127-YEJ200M4,DSZF127-YEJ225M4,DSZF127-YEJ250M4,DSZF127-YEJ280M4,DSZF127-YS132M4,DSZF127-YS160M4,DSZF127-YS180M4,DSZF127-YS200M4,DSZF127-YS225M4,DSZF127-YS250M4,DSZF127-YS280M4,DSZF127-YVP132M4,DSZF127-YVP160M4,DSZF127-YVP180M4,DSZF127-YVP200M4,DSZF127-YVP225M4,DSZF127-YVP250M4,DSZF127-YVP280M4,DSZF127-YVPEJ132M4,DSZF127-YVPEJ160M4,DSZF127-YVPEJ180M4,DSZF127-YVPEJ200M4,DSZF127-YVPEJ225M4,DSZF127-YVPEJ250M4,DSZF127-YVPEJ280M4,BF127-Y11KW,BF127-Y132M4,BF127-Y15KW,BF127-Y160M4,BF127-Y18.5KW,BF127-Y180M4,BF127-Y200M4,BF127-Y225M4,BF127-Y22KW,BF127-Y250M4,BF127-Y280M4,BF127-Y30KW,BF127-Y37KW,BF127-Y45KW,BF127-Y55KW,BF127-Y7.5KW,BF127-Y75KW,BF127-Y90KW,BF127-YEJ132M4,BF127-YEJ160M4,BF127-YEJ180M4,BF127-YEJ200M4,BF127-YEJ225M4,BF127-YEJ250M4,BF127-YEJ280M4,BF127-YS132M4,BF127-YS160M4,BF127-YS180M4,BF127-YS200M4,BF127-YS225M4,BF127-YS250M4,BF127-YS280M4,BF127-YVP132M4,BF127-YVP160M4,BF127-YVP180M4,BF127-YVP200M4,BF127-YVP225M4,BF127-YVP250M4,BF127-YVP280M4,BF127-YVPEJ132M4,BF127-YVPEJ160M4,BF127-YVPEJ180M4,BF127-YVPEJ200M4,BF127-YVPEJ225M4,BF127-YVPEJ250M4,BF127-YVPEJ280M4,GF127-Y11KW,GF127-Y132M4,GF127-Y15KW,GF127-Y160M4,GF127-Y18.5KW,GF127-Y180M4,GF127-Y200M4,GF127-Y225M4,GF127-Y22KW,GF127-Y250M4,GF127-Y280M4,GF127-Y30KW,GF127-Y37KW,GF127-Y45KW,GF127-Y55KW,GF127-Y7.5KW,GF127-Y75KW,GF127-Y90KW,GF127-YEJ132M4,GF127-YEJ160M4,GF127-YEJ180M4,GF127-YEJ200M4,GF127-YEJ225M4,GF127-YEJ250M4,GF127-YEJ280M4,GF127-YS132M4,GF127-YS160M4,GF127-YS180M4,GF127-YS200M4,GF127-YS225M4,GF127-YS250M4,GF127-YS280M4,GF127-YVP132M4,GF127-YVP160M4,GF127-YVP180M4,GF127-YVP200M4,GF127-YVP225M4,GF127-YVP250M4,GF127-YVP280M4,GF127-YVPEJ132M4,GF127-YVPEJ160M4,GF127-YVPEJ180M4,GF127-YVPEJ200M4,GF127-YVPEJ225M4,GF127-YVPEJ250M4,GF127-YVPEJ280M4,FC127-Y11KW,FC127-Y132M4,FC127-Y15KW,FC127-Y160M4,FC127-Y18.5KW,FC127-Y180M4,FC127-Y200M4,FC127-Y225M4,FC127-Y22KW,FC127-Y250M4,FC127-Y280M4,FC127-Y30KW,FC127-Y37KW,FC127-Y45KW,FC127-Y55KW,FC127-Y7.5KW,FC127-Y75KW,FC127-Y90KW,FC127-YEJ132M4,FC127-YEJ160M4,FC127-YEJ180M4,FC127-YEJ200M4,FC127-YEJ225M4,FC127-YEJ250M4,FC127-YEJ280M4,FC127-YS132M4,FC127-YS160M4,FC127-YS180M4,FC127-YS200M4,FC127-YS225M4,FC127-YS250M4,FC127-YS280M4,FC127-YVP132M4,FC127-YVP160M4,FC127-YVP180M4,FC127-YVP200M4,FC127-YVP225M4,FC127-YVP250M4,FC127-YVP280M4,FC127-YVPEJ132M4,FC127-YVPEJ160M4,FC127-YVPEJ180M4,FC127-YVPEJ200M4,FC127-YVPEJ225M4,FC127-YVPEJ250M4,FC127-YVPEJ280M4,MTP127-Y11KW,MTP127-Y132M4,MTP127-Y15KW,MTP127-Y160M4,MTP127-Y18.5KW,MTP127-Y180M4,MTP127-Y200M4,MTP127-Y225M4,MTP127-Y22KW,MTP127-Y250M4,MTP127-Y280M4,MTP127-Y30KW,MTP127-Y37KW,MTP127-Y45KW,MTP127-Y55KW,MTP127-Y7.5KW,MTP127-Y75KW,MTP127-Y90KW,MTP127-YEJ132M4,MTP127-YEJ160M4,MTP127-YEJ180M4,MTP127-YEJ200M4,MTP127-YEJ225M4,MTP127-YEJ250M4,MTP127-YEJ280M4,MTP127-YS132M4,MTP127-YS160M4,MTP127-YS180M4,MTP127-YS200M4,MTP127-YS225M4,MTP127-YS250M4,MTP127-YS280M4,MTP127-YVP132M4,MTP127-YVP160M4,MTP127-YVP180M4,MTP127-YVP200M4,MTP127-YVP225M4,MTP127-YVP250M4,MTP127-YVP280M4,MTP127-YVPEJ132M4,MTP127-YVPEJ160M4,MTP127-YVPEJ180M4,MTP127-YVPEJ200M4,MTP127-YVPEJ225M4,MTP127-YVPEJ250M4,MTP127-YVPEJ280M4,WXF127-WSS11KW,WXF127-WSS132M4,WXF127-WSS15KW,WXF127-WSS160M4,WXF127-WSS18.5KW,WXF127-WSS180M4,WXF127-WSS200M4,WXF127-WSS225M4,WXF127-WSS22KW,WXF127-WSS250M4,WXF127-WSS280M4,WXF127-WSS30KW,WXF127-WSS37KW,WXF127-WSS45KW,WXF127-WSS55KW,WXF127-WSS7.5KW,WXF127-WSS75KW,WXF127-WSS90KW,WXF127-WSSB132M4,WXF127-WSSB160M4,WXF127-WSSB180M4,WXF127-WSSB200M4,WXF127-WSSB225M4,WXF127-WSSB250M4,WXF127-WSSB280M4,WXF127-WSSVP132M4,WXF127-WSSVP160M4,WXF127-WSSVP180M4,WXF127-WSSVP200M4,WXF127-WSSVP225M4,WXF127-WSSVP250M4,WXF127-WSSVP280M4,WXF127-WSSVPB132M4,WXF127-WSSVPB160M4,WXF127-WSSVPB180M4,WXF127-WSSVPB200M4,WXF127-WSSVPB225M4,WXF127-WSSVPB250M4,WXF127-WSSVPB280M4。

F127減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.goto53.com/product/list-fxiliejiansuji-cn.html
